Power Input

Power Input - front (IMG_2731 V1).png

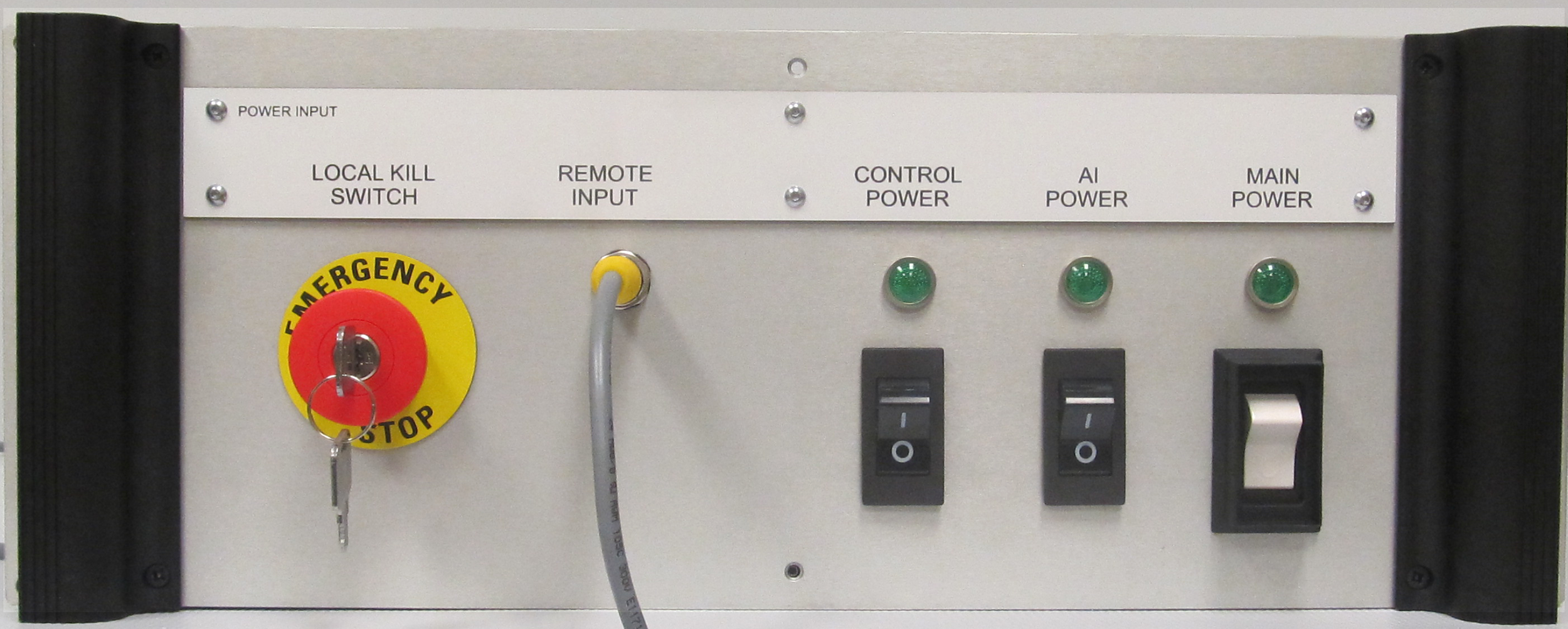

Power Input Enclosure

  • Provides AC power to all system enclosures
  • Input voltage: 220 VAC
  • Input current: 25 A max
  • Front panel switch functions
    • Control Power - Switches power to Power Output enclosures
    • AI Power - Switches power to Analog Input enclosure
    • Main Power - Switches power to Power Input enclosure and all other enclosures in system.  Also contains main system breaker.
  • Safety module enables switching of Power Output enclosure power using Emergency Stop button on front panel and Remote Interface
  • 4U height
  • Price: 6,950

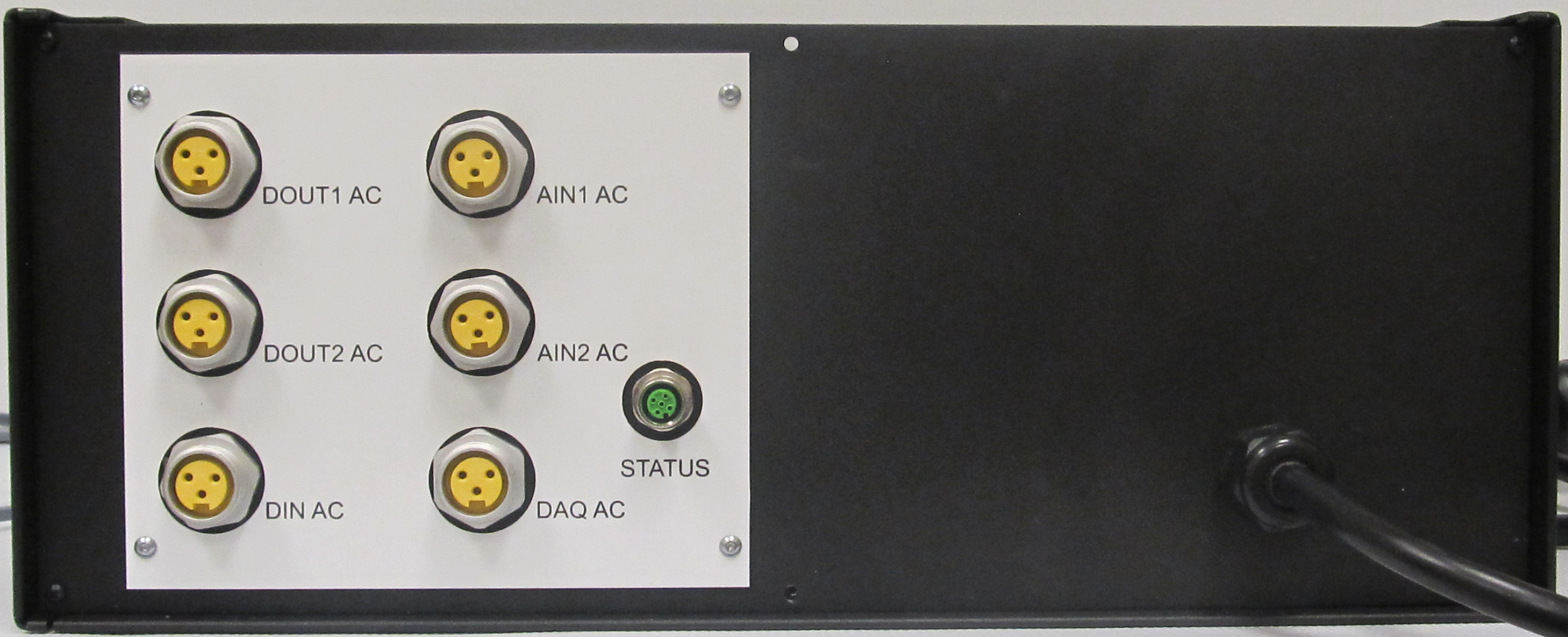

 Rear Panel showing connectors for power distribution to other System enclosures

Rear Panel showing connectors for power distribution to other System enclosures
