Power Output

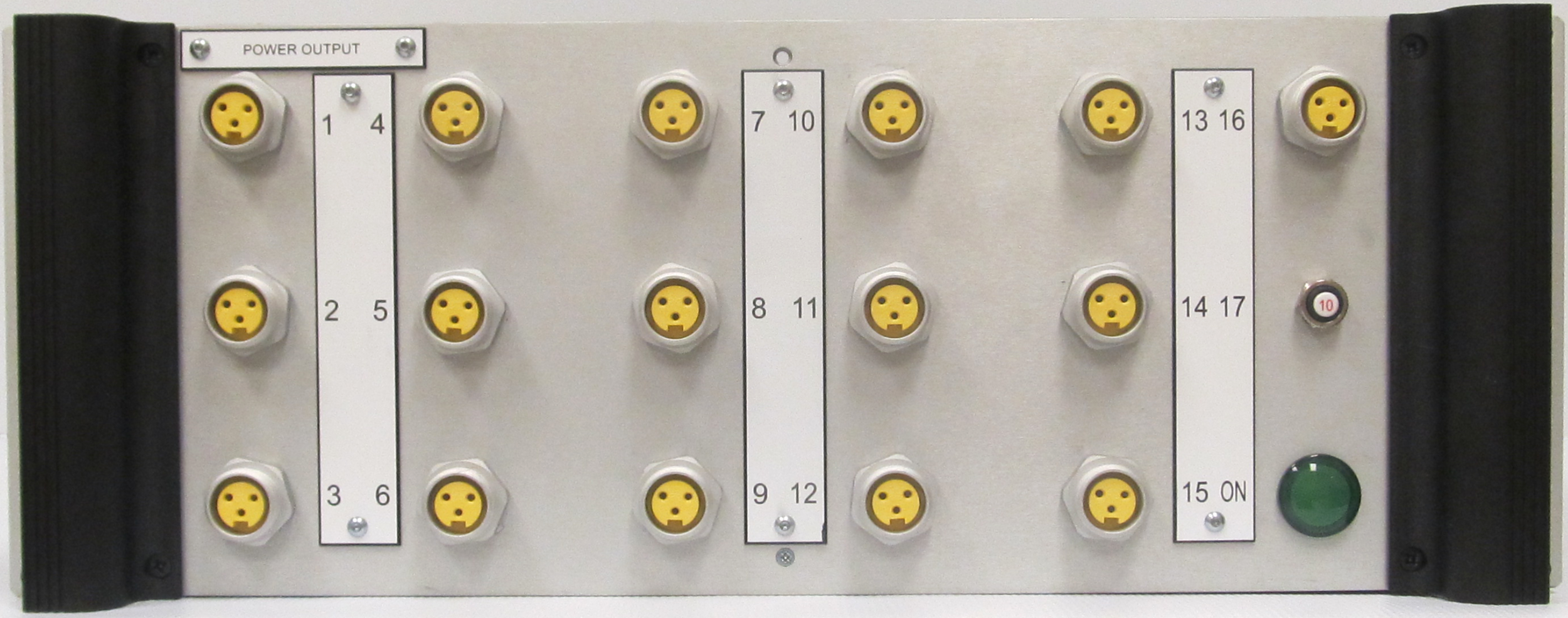

Power Output - front (IMG_2716 V1).png

Power Output Enclosure

  • Solid state relays drive 16 channels
  • Output voltage: 24 VDC
  • Output current: 15x 3 A channels, 1x 8 A channel
  • 3 A channels individually fused, 8 A channel employs breaker
  • Flyback diodes on each channel dissipate voltage spikes generated by deactivation of inductive loads (eg. solenoid valves)
  • Diagnostic circuitry for monitoring output voltage and total output current
  • Includes National Instruments NI-9477 digital output module.  Module will be installed in cRIO-9035 CompactRIO chassis in Data Processor enclosure and wired to Power Output enclosure if Data Processor is purchased at the same time as this enclosure.
  • 4U height
  • Price: USD 7,950
